J23 125T 10 Ton High Speed Series C Type High Performance Power Press Feeder For Aluminum Iron Steel Hole Punching Machine

Hjem / Produkter / J23 125T 10 Ton High Speed Series C Type High Performance Power Press Feeder For Aluminum Iron Steel Hole Punching Machine

Produkt beskrivelse

Features of J23 series punching machine:

1. Adopt horizontally placed crankshaft.
2. C- frame provides maximum rigidity and minimum deflection for accurate parts and long tool life.
3. Steel-welded frame, high rigidity and less deformation Compact.
4. Thick plates and large columns provide the stable platform you need for your demanding application.
5. Wide body frame eliminating vibration for improved IDE life and machine, which means economical and practical.
6. Operation space is wide, and the movable bolster could be moved out of frame to set the die.
7. Rigid rotated bond clutch.
8. Manual shut height adjustment with scale display.
9. Høj nøjagtighed, høj effektivitet, enkel og bekvem betjening, god ydeevne, favorabel pris og bedste service.

Parameter

Parameter
J23-10
J23-16
J23/21-25
J23/J21-40
J23/J21-63
J23/J21-80
J21-100
J21-125
 Nominal pressure (kn)
100
160
250
400
630
800
1000
1250
Nominal pressure stroke(mm)
2
2
2.5
6
6
7
7
8
Slideing stroke(mm)
45
55
65
90
110
120
140
150
Die height(mm)
180
220
270
320
360
440
480
500
Die height adjustment(mm)
35
45
55
65
80
90
100
100
Distance between slider center and machine(mm)
130
160
200
250
260
350
380
390
Size of die handle bore (mm)
Diameter
30
40
40
50
50
61
60
60
Depth
55
60
60
70
70
75
75
75
Worktable thickness(mm)
35
40
50
65
80
100
120
130
Worktable height (mm)
730
750
800
850
810
850
850
860
Motor(kw)
1.1
1.5
2.2
5.5
5.5
7.5
11
11
Vægt (kg)
595
1095
1830
3600
4200
8020
10800
12000

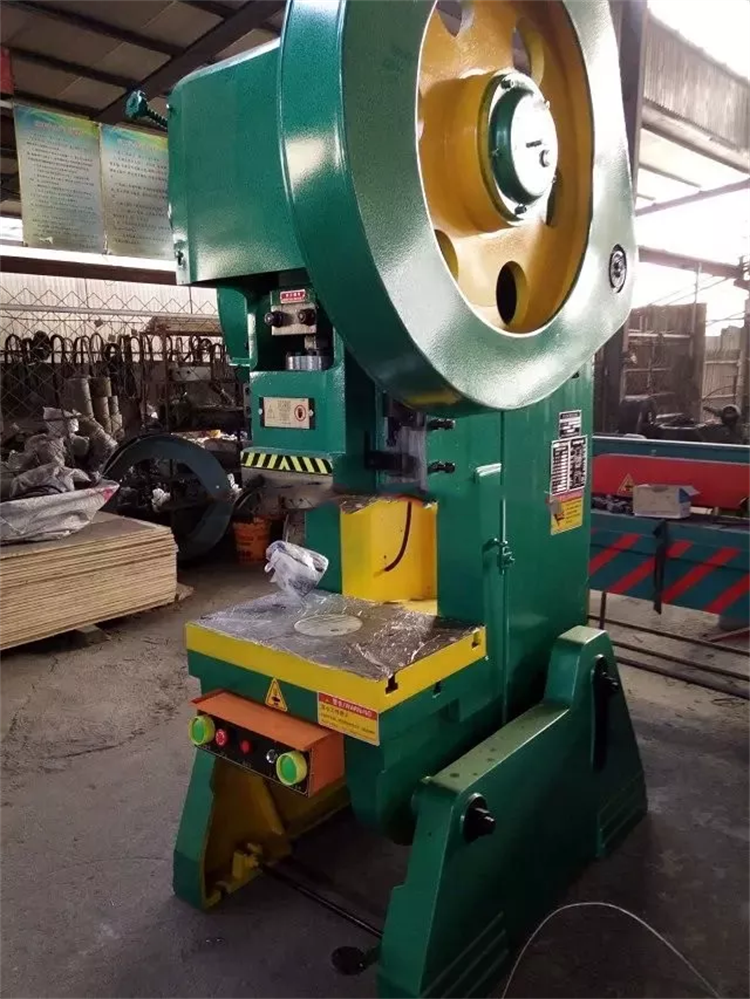

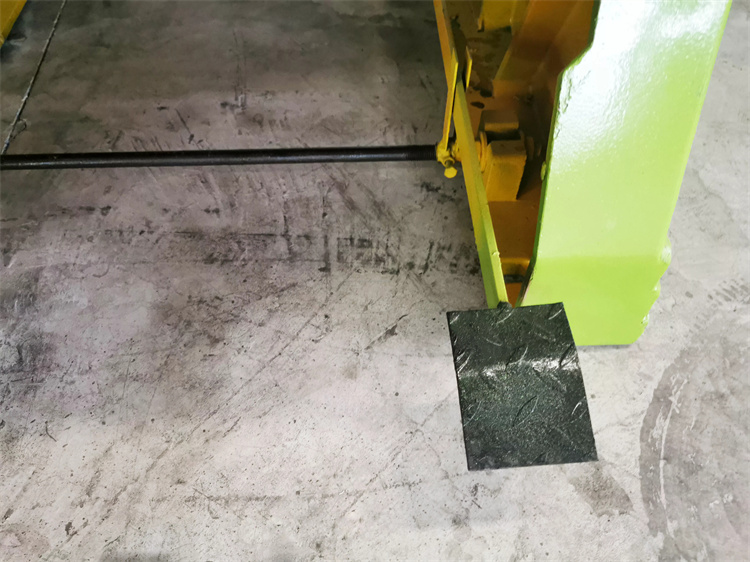

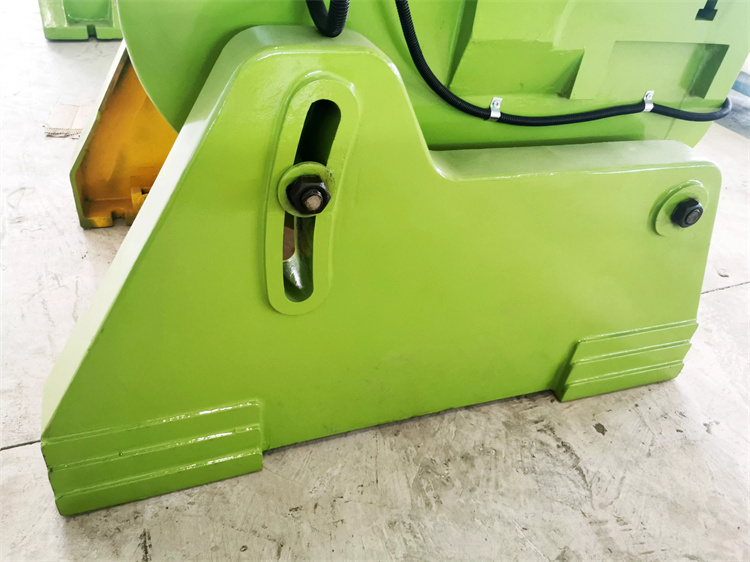

Detailed images

Ansøgninger
